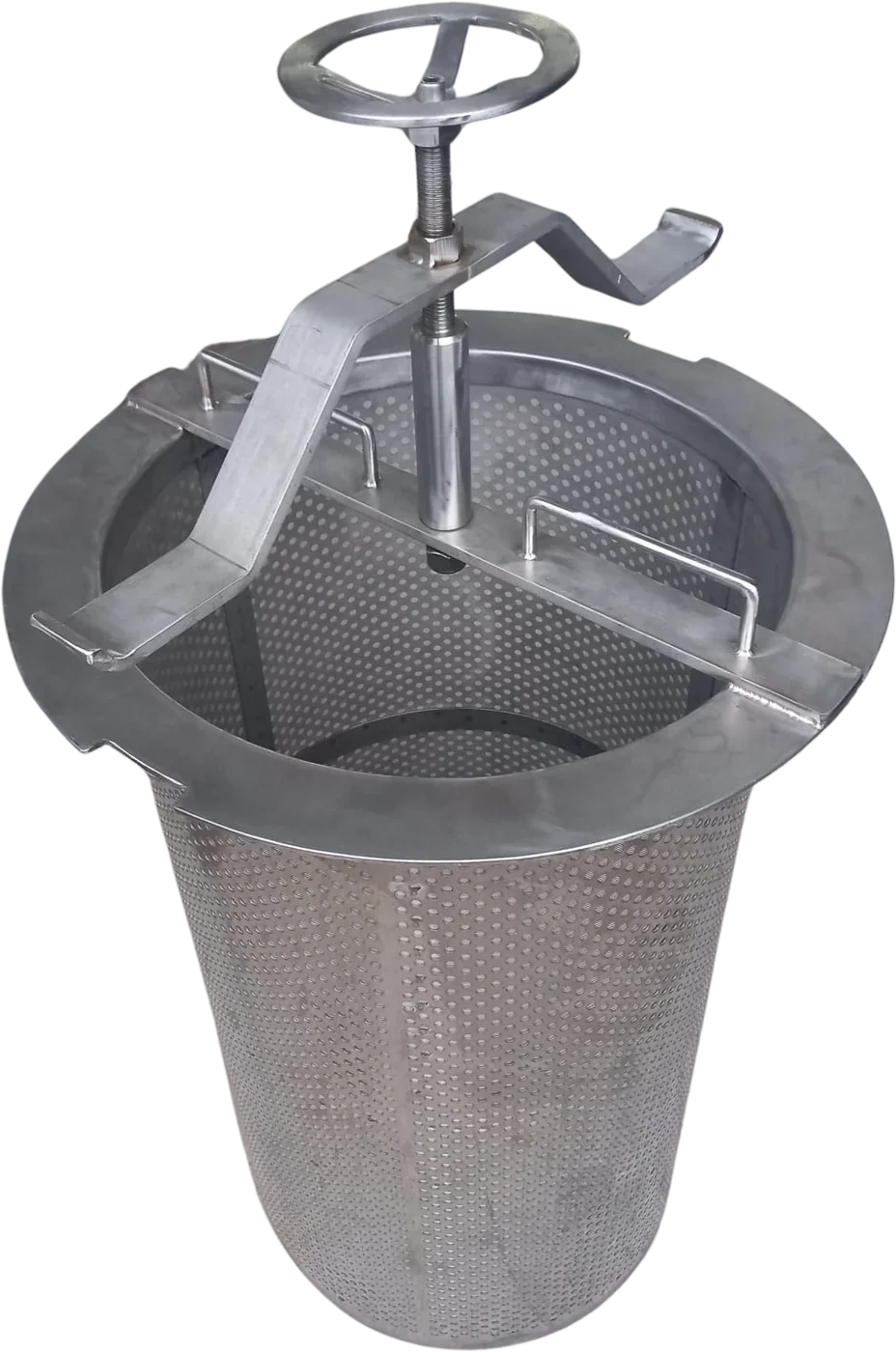

Basket Filter Elements
Stainless steel baskets that stop coarse particles on process lines and are cleaned and reused.
Specifications
- 25–3,000 µmMesh opening
- 304 / 316LStainless steel

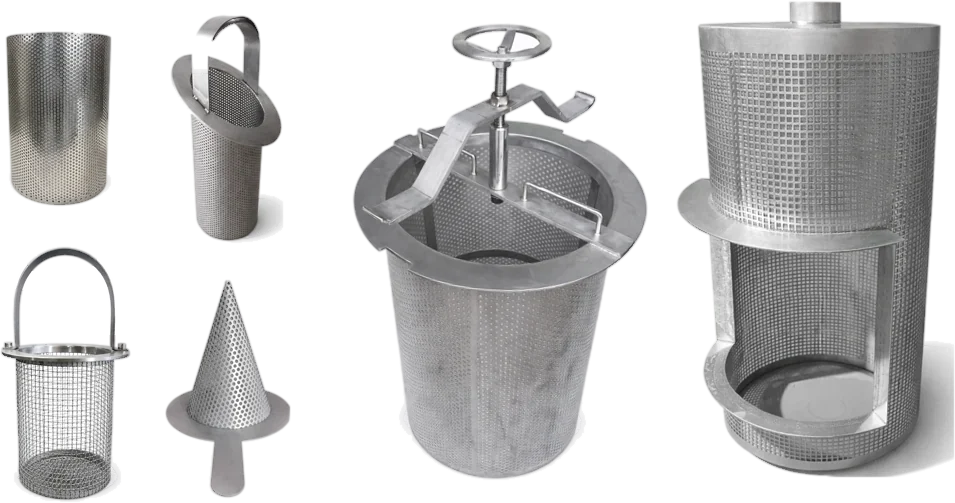

- Cylindrical basket: standard applications
- Conical basket: fluids with high solids load
- High-flow, large-section basket
- Electropolished or pickled finish
- Made to suit the housing
Where basket filters are used
A basket element stops coarse debris such as weld spatter, chips, sand and seal fragments, protecting pumps, heat exchangers, nozzles and meters. The basket is removed, cleaned and refitted, so running costs stay low. Duplex basket housings keep the line running while one basket is cleaned.
Frequently asked questions
How often is a basket cleaned?
It depends on the dirt load; clean it when the differential pressure across the housing rises.
How is the mesh opening chosen?

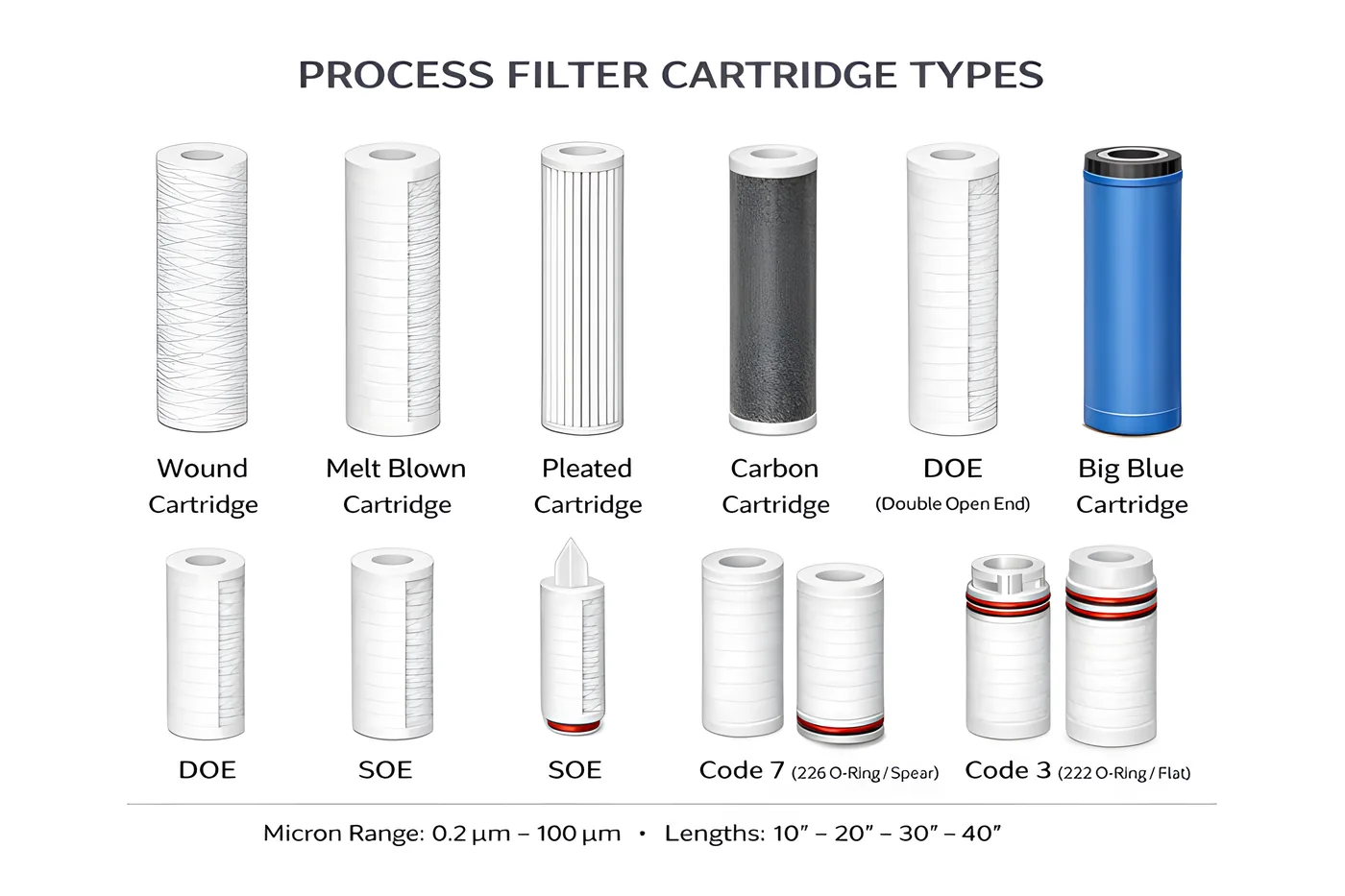

By the largest particle the protected equipment can tolerate. For finer filtration, add a cartridge or bag filter downstream.
